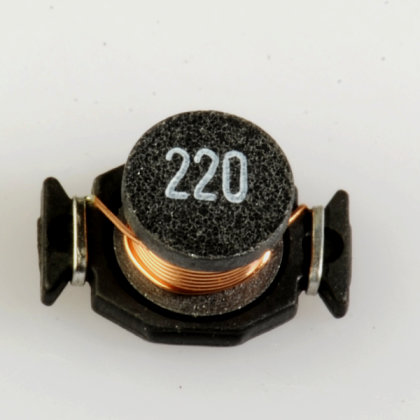

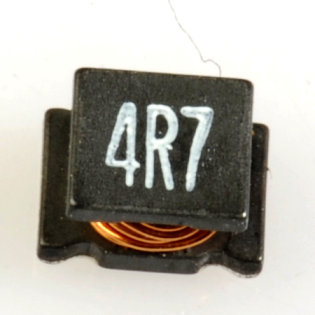

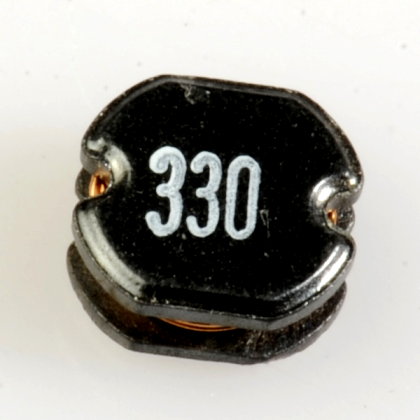

Ferrite SMD Unshielded Type

Miniaturized SMD packaged...

Product Number Dimensions(mm) Inductance Range(uH) Rdc Range(Ω) Rated Current(A)

MSCD-0311

3.5x3.0x1.1 1.0~100 0.085~6.6 0.1~1.5

MSCD-0315

3.5x3.0x1.5 1.0~470 62m~18.2 0.09~1.6

MSCD-32

3.3x3.0x2.1 0.47~1000 17.7m~28.8 0.05~3.0

MSCD-43

4.5x4.0x3.2 1.0~470 48.7m~7.0 0.11~2.7

MSCD-52

5.8x5.2x2.5 0.25~1000 5.3m~9.87 0.05~7.5

MSCD-53

5.8x5.2x3.0 1.0~1000 30m~8.0 0.13~4.5

MSCD-54

5.8x5.2x4.5 0.47~2200 16m~12.9 50m~4.5

MSCD-73

7.8x7.2x4.0 1.0~470 10m~3.0 0.25~4.6

MSCD-75

7.8x7.0x5.0 1.0~470 20m~1.96 0.34~6.3

MSCD-105

10.0x9.0x5.4 3.3~1000 15m~2.8 0.22~5.0

MSCD-106

10.0x9.0x7.5 10~1000 60m~3.0 0.46~3.5

MSCD-108

10.0x9.0x8.5 6.8~1000 33.7m~1.74 0.48~4.3

MSCH-2015C

2.0x1.5x1.7 1.0~22 0.26~3.77 0.1~0.65

MSCH-3216C

3.2x1.6x1.8 0.12~100 0.112~15.6 80m~0.97

MSCH-3225C

3.2x2.5x2.0 0.5~560 60m~30 60m~1.0

MSCH-4532C

4.5x3.2x2.6 1~2000 80m~55 30m~1.08

MSCH-5750C

5.7x5.0x4.7 0.12~10000 9.8m~140 50m~6.0

MSCDB-1303

13.5x9.5x3.2 2.2~1000 30m~7.0 0.1~3.8

MSCDB-1305

13.5x9.5x5.5 1.0~1500 9m~4.49 0.29~9.0

MSCDB-1311

13.5x9.5x11.5 1.0~1000 8m~2.0 0.8~16.0

MSCDB-1807

18.5x15.5x7.5 1.0~3300 11m~7.0 0.5~20

MSCDB-0905H

9.0x6.1x5.2 0.18~100 5.0m~1.11 0.47~9.0

MSCDB-1305H

13.2x9.95x6.35 0.33~330 2.0m~0.977 0.76~16.0

MSCDB-1807H

19.4x13.3x6.8 4.7~68 12m~0.156 1.6~6.5

MSCDB-2206H

22.3x16.2x7.4 0.8~1000 2.76m~1.8 1.0~35
